TPS61045DRBR
Manufacturer:
Texas Instruments
Mfr.Part #:
TPS61045DRBR
Datasheet:
Description:

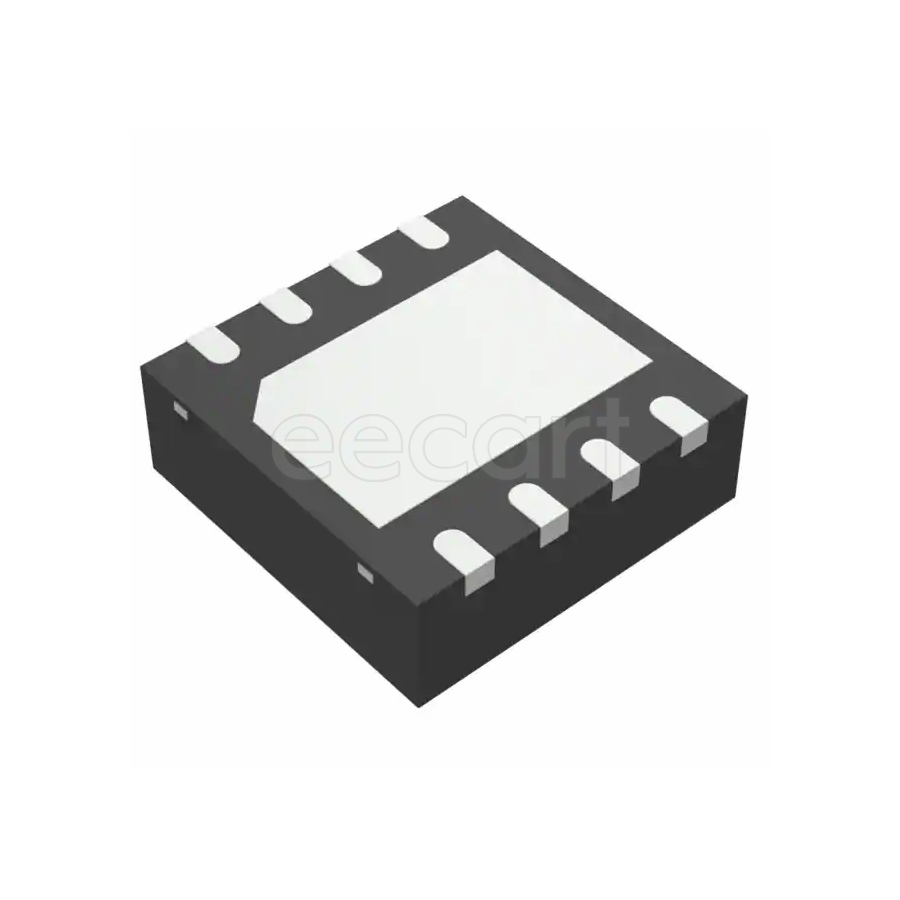

Voltage Regulators - Switching SON-8 SMD/SMT Boost Adjustable 28 V
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 1 mm |
| Thickness | 0.88 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Min Input Voltage | 1.8 V |
| Output Current | 20 mA |
| Output Voltage | 28 V |
| Operating Supply Voltage | 6 V |
| Output Type | Adjustable |
| Lifecycle Status | Active |
| Power Dissipation | 148 mW |
| Max Output Current | 20 mA |
| Quiescent Current | 40 µA |
| Max Supply Current | 65 µA |
| High Level Output Current | 20 mA |
| Synchronous Rectifier | No |
| Topology | Boost |
| Switching Frequency | 1 MHz |
| Max Input Voltage | 6 V |
| Number of Outputs | 1 |
| Efficiency | 85 % |
| Min Output Voltage | 1.8 V |
| Max Output Voltage | 28 V |
| RoHS | Compliant |
| Packaging | Reel |
| Function | Step-Up |
Stock: 4
Distributors
pcbx
pcbxUnit Price$1.53293
Ext.Price$1.53293
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.53293 | $1.53293 |
| 10 | $1.29994 | $12.99940 |
| 25 | $1.19776 | $29.94400 |
| 50 | $1.10361 | $55.18050 |
| 100 | $1.01685 | $101.68500 |
| 300 | $0.98262 | $294.78600 |
| 500 | $0.94953 | $474.76500 |
| 1000 | $0.92053 | $920.53000 |
